Rebar bending machine
GL-L32T5 CNC Steel bar bending center GW40 Rebar bending machine GW50 Rebar bending machineRebar cutting machine
GT6-14 CNC Hydraulic Bar Straightening and Cutting Machine GL4-16A CNC Hydraulic Bar Straightening and Cutting Machine GL-120KN CNC rebar shearing lineRebar stirrup and spiral bending machine
GL-L32T5 CNC Steel bar bending center WG16 CNC Stirrup bending machine SWG12 CNC Stirrup bending machinePerformance advantages.

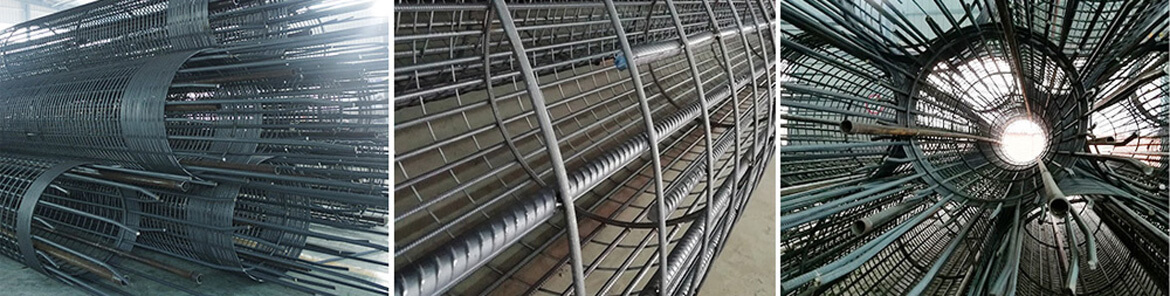

Machined Shape.
Technical parameters.
| Modle | GL-1500 | GL-2000 | GL-2500 | |||||||||
| Pile diameter of cage(mm) | 300-1500 | 400-2000 | 800-2500 | |||||||||
| Length of cage（m） | 12 | 18 | 24 | 27 | 12 | 18 | 24 | 27 | 12 | 18 | 24 | 27 |
| Max.Weight of cage（kg） | 4500 | 6000 | 8000 | |||||||||
| Length of cage（m) | 9--27m | |||||||||||
| Diameter of winding rebar（mm） | ∅5--∅16 | |||||||||||
| Space of winding rebar（mm） | 50--500 | |||||||||||
| Diameter of main rebar（mm） | ||||||||||||
| Pressure of hydraulic station（Mpa) | ∅12--∅40 | |||||||||||
| Total reted power（kw） | 15 | 23 | 27 | |||||||||
| Size LxWxH（m） | 28.5x5x2.5 | 38.5x5.5x2.5 | 46.5x5.5x2.5 | 54.5x5.5x2.5 | 28.5x8x3.3 | 38.5x8x3.3 | 46.5x8x3.3 | 54.5x8x3.3 | 28.5x8.5x3.5 | 38.5x8.5x3.5 | 46.5x8.5x3.5 | 54.5x8.5x3.5 |
| Weight（kg） | 12500 | 16000 | 18000 | 20000 | 18000 | 21000 | 24000 | 28500 | 18000 | 21000 | 24000 | 28500 |

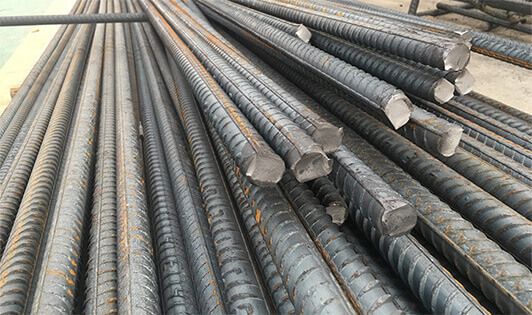

Machined Shape.

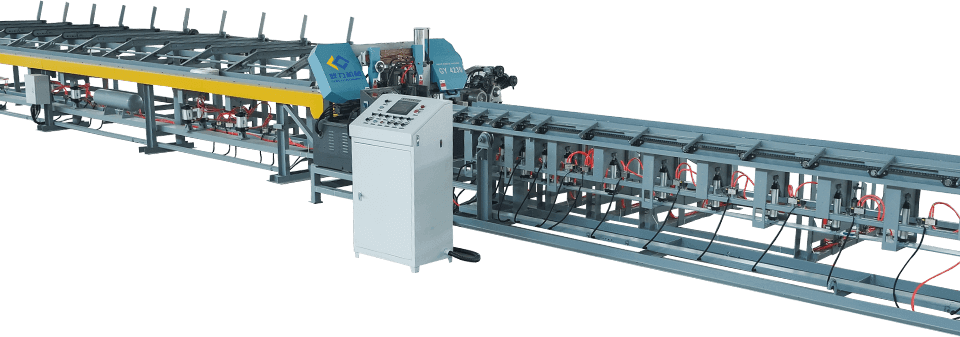

| Serial number | project name | Technical Parameters | |||||||
| 1 | Maximum machining diameter (round steel) | ≤ 50 mm | |||||||
| 2 | Rebar conveying line speed | 58～62 m/min | |||||||
| 3 | Maximum length of feeding line | 12000 mm | |||||||
| 4 | Maximum length of rewinding line | 12000 mm | |||||||
| 5 | Effective width of saw blade | 450 mm | |||||||
| 6 | Rebar conveying speed | 58-62m/min | |||||||
| 7 | Thread length | ≤90 mm | |||||||
| 8 | Single head wire time | 25s～40s | |||||||
| 9 | Thread diameter range | Φ16～Φ40mm | |||||||
| 10 | Single head polishing time | 3s～5s | |||||||
| 11 | Silo level | 3*2 | |||||||
| 12 | Operating Voltage | 380V | |||||||
| 13 | Total power / total power consumption | 40 Kw | |||||||
| 14 | Operating temperature | -10º～50º | |||||||
| 15 | working pressure | ≥0.4MPa | |||||||
| 16 | Equipment weight (complete set of machine) | 18T | |||||||
| 17 | Machine size | 26000×6500×1700 mm | |||||||
| Rebar diameter (HRB400MPa) | Φ16 | Φ20 | Φ25 | Φ28 | Φ32 | Φ35 | Φ40 | Φ45 | Φ50 |
| Number of steel bars | 28 | 22 | 18 | 16 | 15 | 12 | 11 | 10 | 9 |
Performance advantages.
Intelligent processing,high precision of finished products
Multilevel finished products storage mechanism ensures long service life
Modular combination, choose configuration according to demand
A two-way discharge design is used to double the amount of finished products
| Model | GL-120KN | |||||||
| Shearing range of rebar | Φ12-40mm | Length range of rebar | 1000-12000mm | |||||
| Shearing frequency | 20 times/min | Shearing precision | ±2mm | |||||
| Conveying speed of roller way | 1.5m/s | Working pressure | 31.5Mpa | |||||
| Electric control system | 380V 50-60Hz | Power | 25.5kW | |||||
| Size(L*W*H) | 28000*3300*2500mm | Weight | 7000 kg | |||||
| Diameter of rebar | Φ12 | Φ16 | Φ20 | Φ25 | Φ28 | Φ32 | Φ40 | |
| Number of rebar | 15 | 12 | 10 | 8 | 6 | 4 | 1 | |

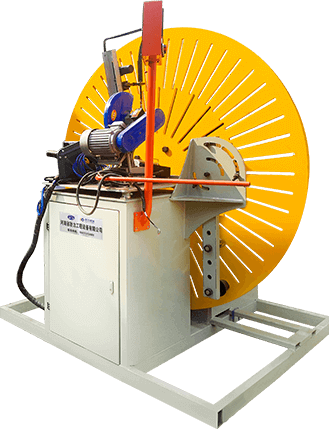

| Model | GLWY-2500 | ||
| Rebar diameter | 16-32mm | Bending speed | 80cm/min |
| Bending motor power | 4.5kw | Cutting motor power | 1.5kw |
| Voltage | 380V/50Hz | Size | L2500*W2650*H2300mm |
| Weight | 1700Kg | ||
