Factory direct sales quality assurance
Home > Product > Rebar stirrup and spiral bending machine

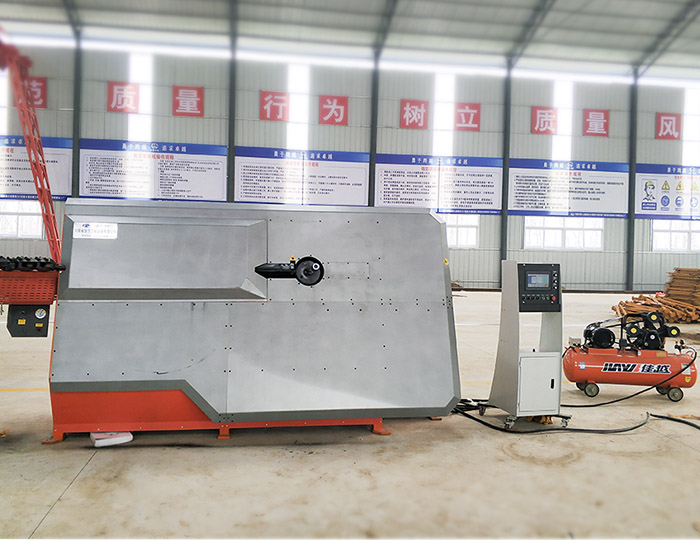

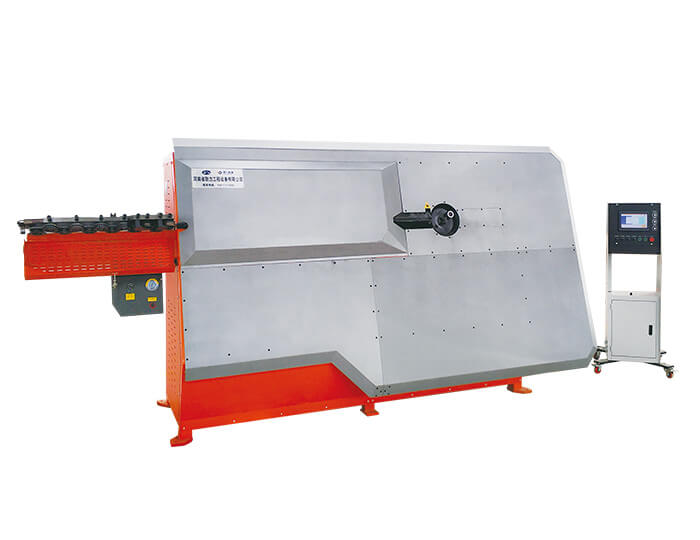

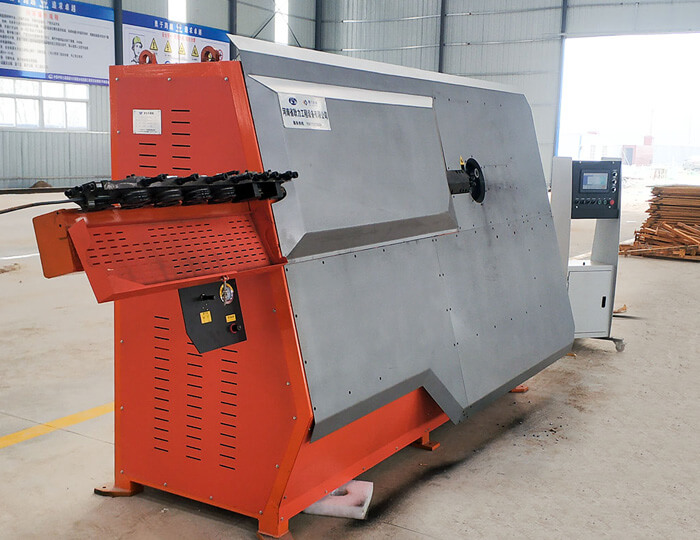

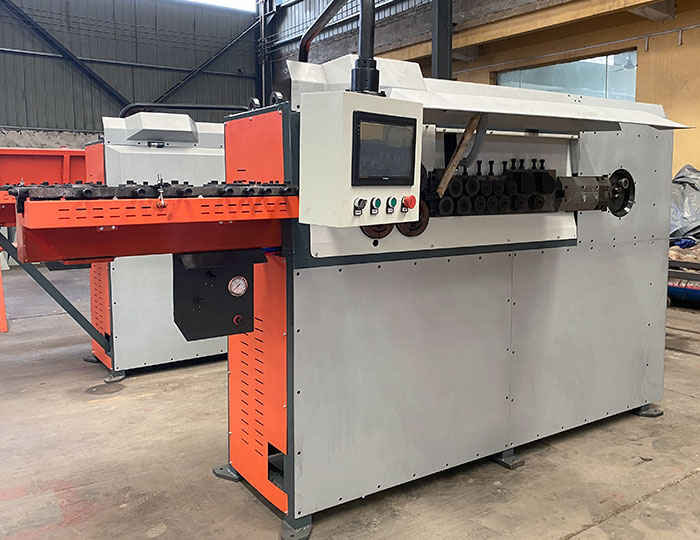

SWG12 CNC Stirrup bending machine

  • Single line processing capacity：φ4-12mm

  • Two-line processing capacity：φ5-10mm

  • Bending angle：＜±180°

  • Length accuracy：±1mm

CONTACT US [email protected]
Performance advantages

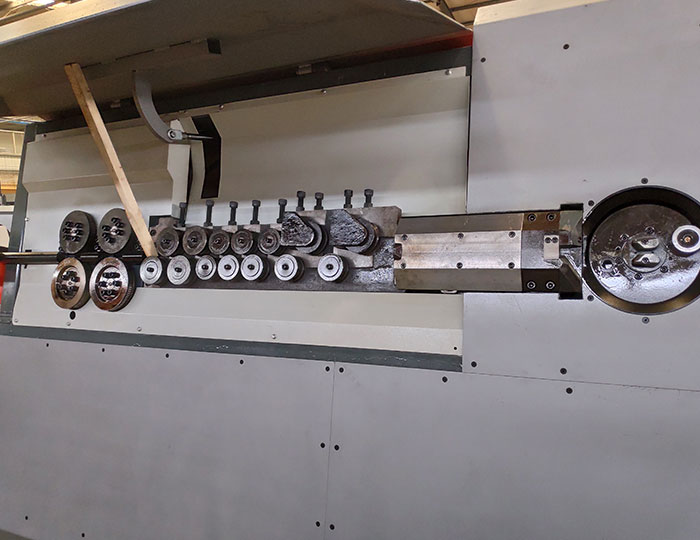

New intelligent control system for straightening ,bending and shearing of steel bars

Advanced CNC control technology to realize automation of straightening ,bending and shearing .

Heat treatment process to improve product life and precision

The stressed parts are heat-treated according to operation conditions so as to improve service life

Centralized control of console ,making operation more convenient

Centralized control of each operation button console ,convenient and easy to operate ,processing speed is adjustable.

Synchronous belt to dive , bending bars in positive and negative directions

The bending mechanism adopts synchronous belt for transmission,bending bars in positive and negative directions

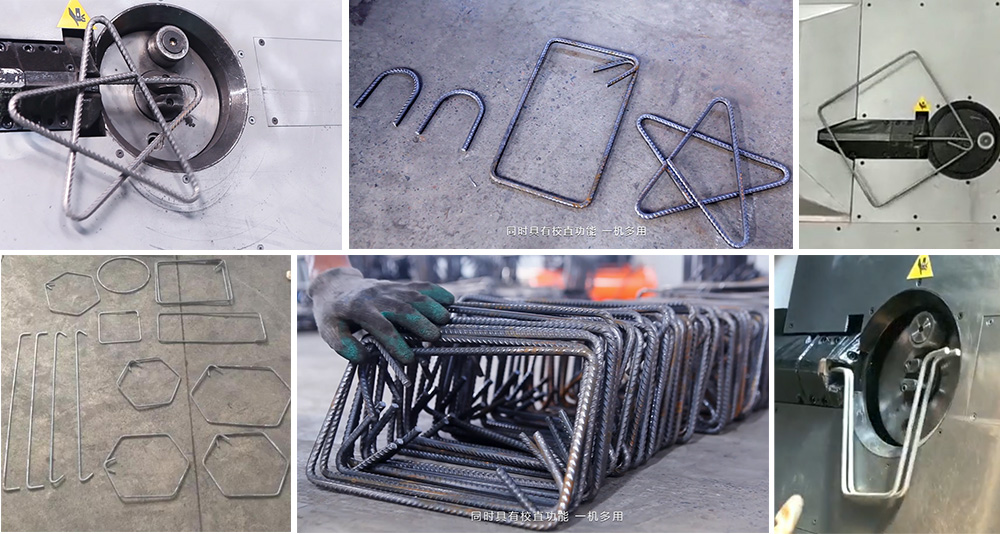

Machined Shape

Technical parameters

Model

SWG12

Single line processing capacity

φ4-12mm

wo-line processing capacity

φ5-10mm

Bending angle

＜±180°

Central pin diameter

20-32mm

Maximum traction speed

110m/min

aximum bending speed

1200°/sec

Length accuracy

±1mm

Angle accuracy

±1°

Ration angle of working surface

45°（90°~135°）

Processing shape of steel bar

Modular maps+personalized editing

Processing numbers

≤2

Pneumatic pressure

≥0.6Mpa

Working temperature

5°~40°

Length fixed way

Driven wheel counting

Average electricity consumption

6kw/h

Total power

28kw

Machine weight

3300kg

Dimension

3950×1300×2100mm
